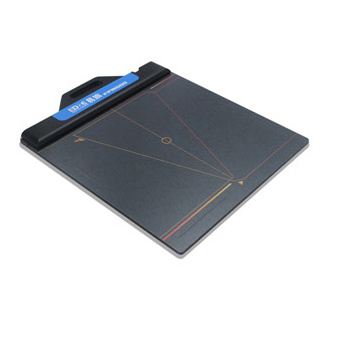

Emat

The emat foot pressure distribution test system be used for high density plantar pressure sensors and dynamic analysis software, which can accurately obtain the pressure distribution of each part of the plantar when standing and walking. Through objective and quantitative data analysis, it support clinical diagnosis and treatment methods, emat can provide further insight into parameters, such as foot function and biomechanics, and indentify high foot pressure problems which can’t not be distinguished by the human eye. It can be widely used in foot function analysis, gait analysis, postural stability, fall risk assessment, exercise laboratory, medical institution rehabilitation department, foot and ankle surgery, and scoliosis correction.

Eprint

Fully enclosed thermostatic body, air filtration system, and very safety. Two doors open, removable glass platform, easy to cool and easy to obtain.

It is suitable for printing PLA, ABS, TPU (soft materials), and composite PLA, Wood, carbon fiber and other materials.

Product frame: steel sheet metal chassis, MB printing mechanism, CNC processing parts of alumina parts.

Body features: Fully enclosed thermostatic body with 2 doors.

Size: 357 x 370 x 485mm

Package size: 490 x 437 x 580mm

Net weight of equipment: 22kg

Packing weight: 30kg

Platform temperature: 0-100 ℃

Platform material: 6061 aluminum plate, 4mm thick with removable glass

Nozzle diameter: 0.4mm (0.2, 0.6mm optional)

Nozzle temperature: 0-280 d℃

Input voltage: 110V/220V, 50-60HZ

Print power: 180-280W

Touch screen manipulation: 3.2 inch full-color touch screen

Certification: CE, FCC, ROSH

Printing technology: Melt accumulation (FDM)

Forming size: 310 x 200 x 200mm

Print accuracy: 0.05-0.4mm

Positioning accuracy: XY axis: 0.004mm, Z-axis: 0.0025mm

Print speed: 10-300mm/S

Printing method: USB connection printing, SD card, offline printing

Printing function: break alarm, break point to continue, power off to continue, automatic leveling

Eco-friendly system: Air filtration system

Cooling system: Air-cooled system

Print supplies: PLA, ABS, TPU, PLA compliant, Wood, carbon fiber

Supplies specification: 1.75mm-kg/roll

Supplies color: Dozens of kinds

Slice software: compatible with CURA, Repetier-host, S3D

File formats: STL, OBJ, AMF

Operating systems: Windows, Mac, Linux

Custom features: dual nozzle, Wifi printing, mobile APP printing, remote camera monitoring

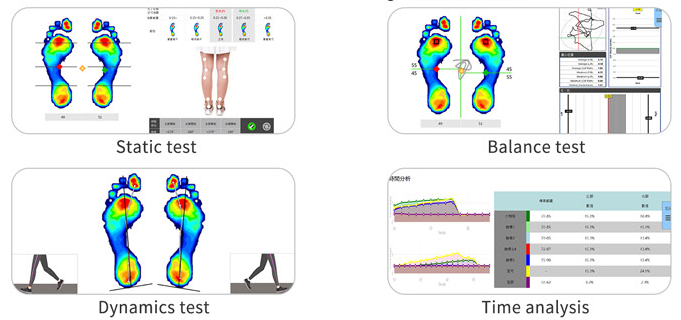

Product features.
1.Confirm the foot pressure data.
2.Screen for areas where foot ulcers may occur.
3.Establish the asymmetry of both sides during the stance period.
4.According to different foot areas such as heel, midfoot and forefoot.
5.Perform foot function measurement for foot pressure analysis.
6.Check the dynamic displacement and local pressure concentration.
7.Monitor the progress of balance, muscle strength, and weight transfer function.
